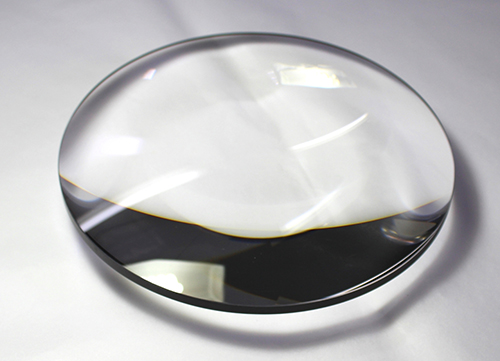

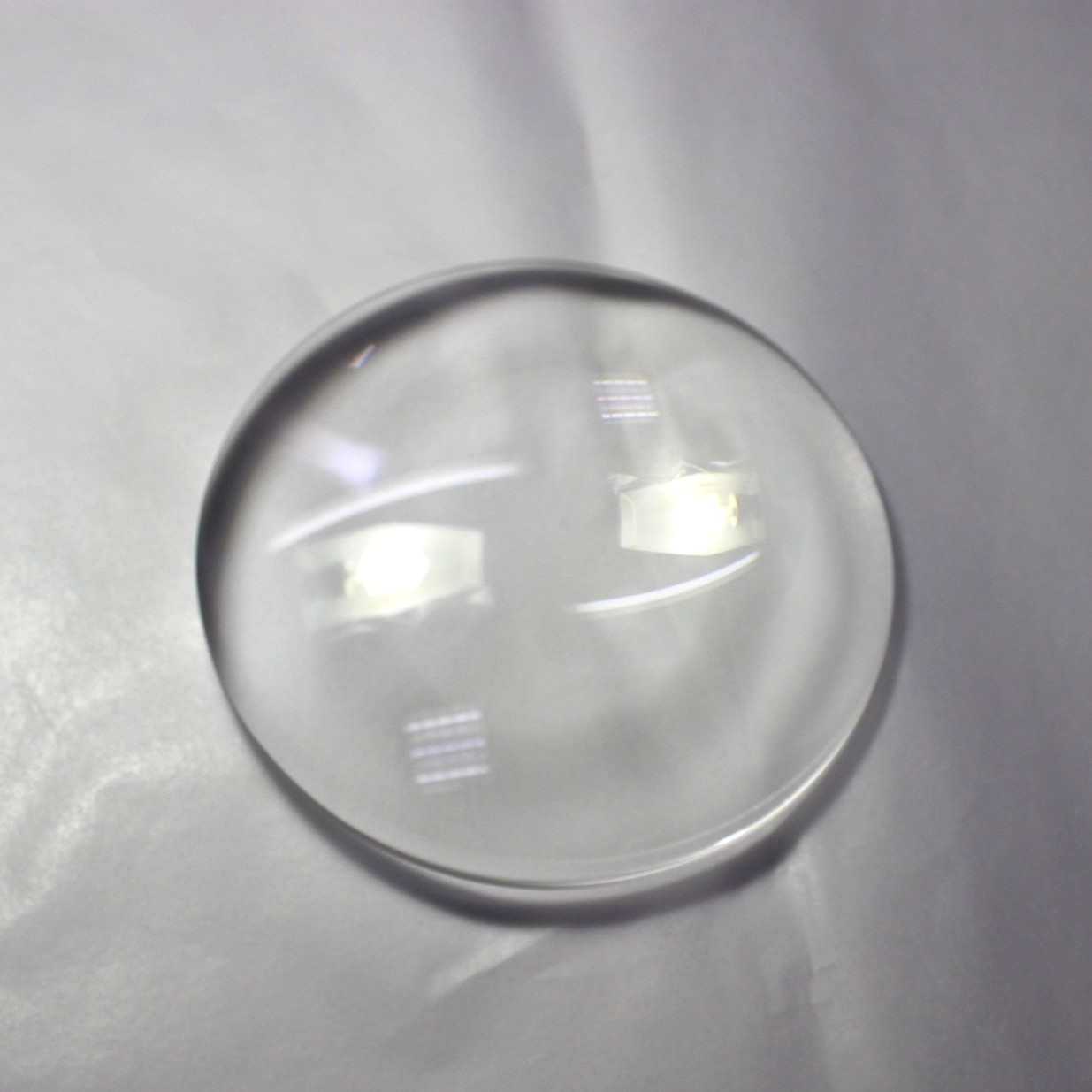

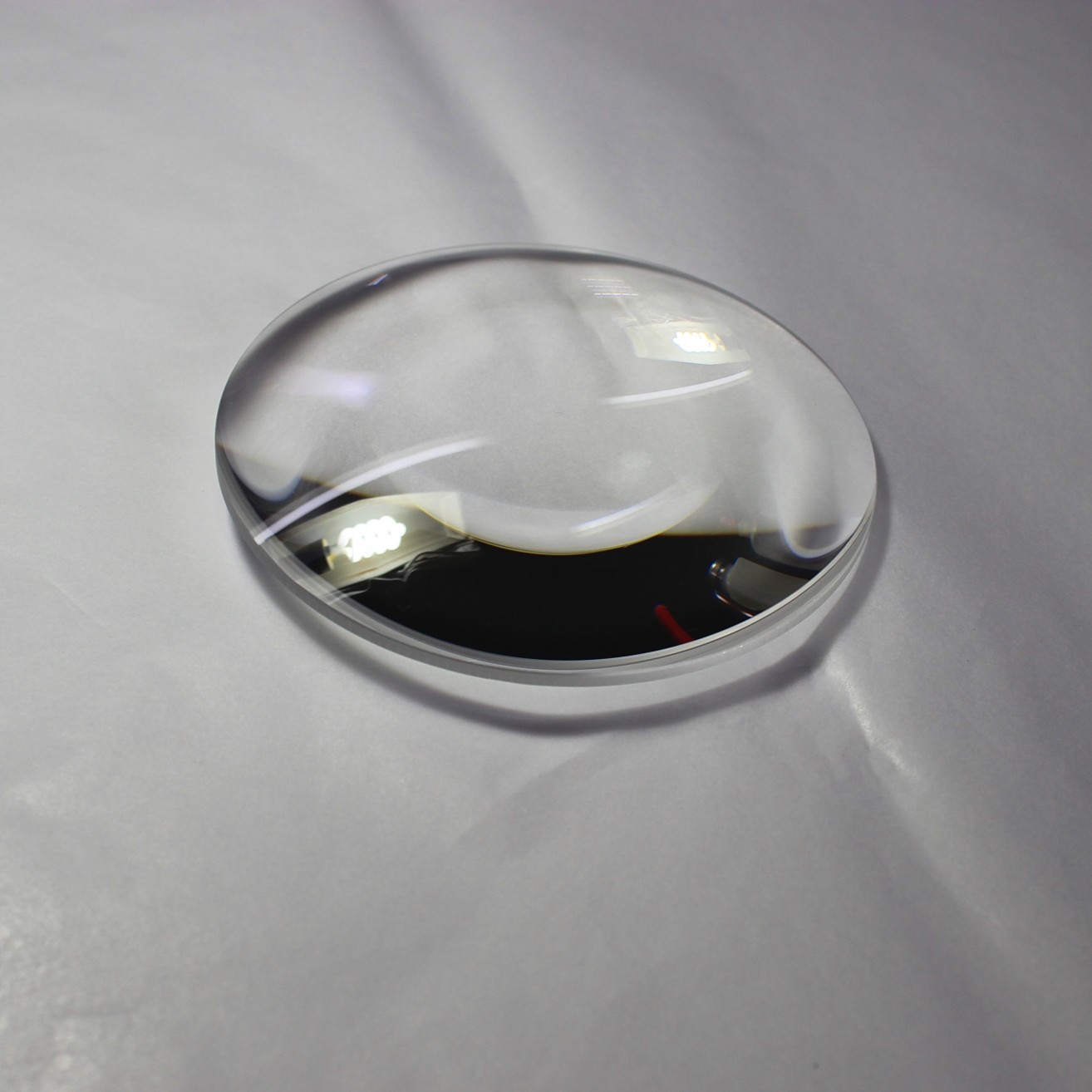

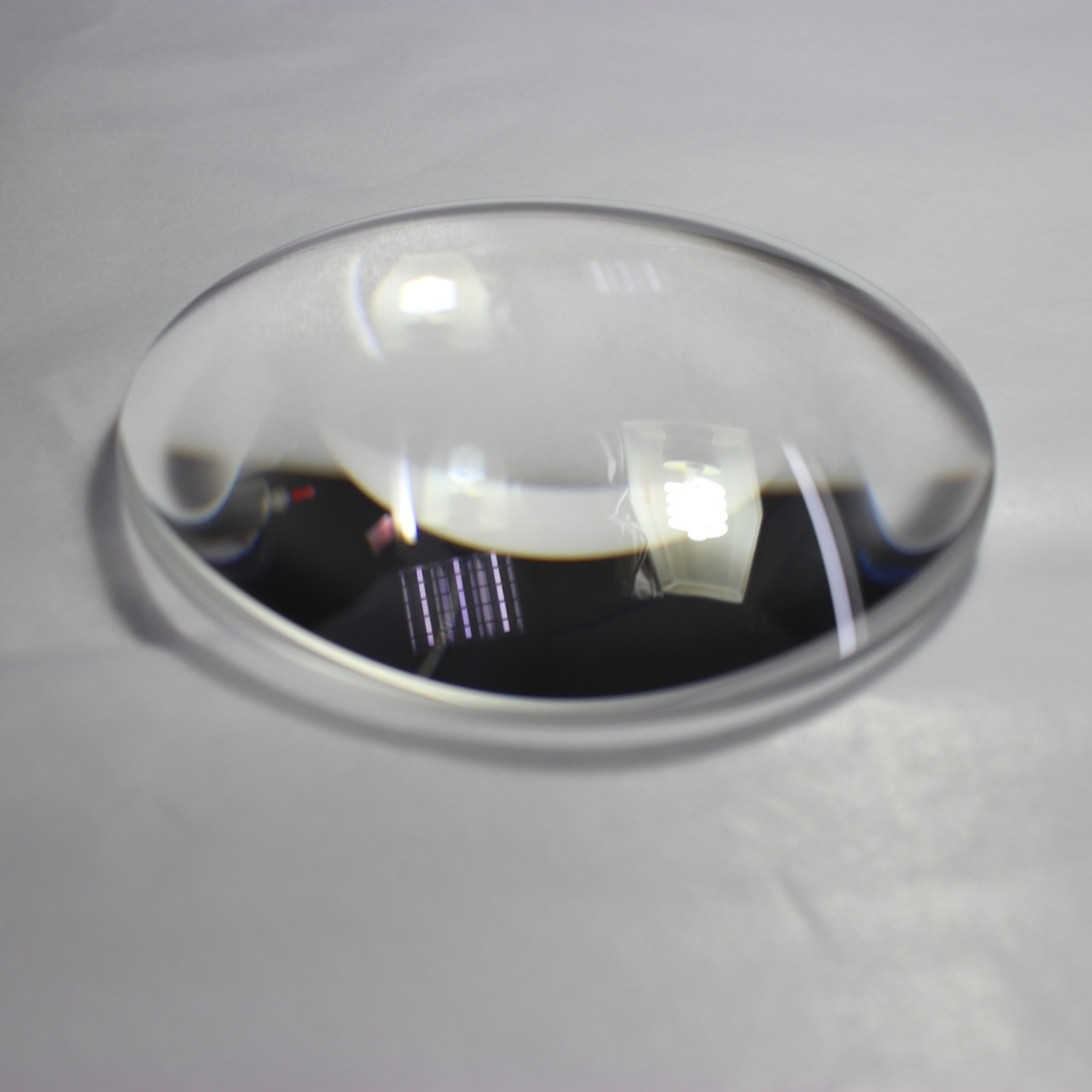

Bi convex Lens

  • Category: Spherical Lens
  • Optical Bi convex spherical lens
  • Used to converge light from a point source
  • Idael for transmit images to other optical systems
  • Customized diamter and material spherical lens
  • Product description:Customized optical glass BK7K9, plano convex concave double convex spherical lens, Spherical Lens glass double convex lense Convex Lens Focal Length, high quality factory direct sales spherical lens.

Double Convex Spherical lens

A bi convex lens is a biconvex lens sheet that includes an incident surface and an emitting surface, characterized by a longer focal length at the middle of the lens face and a shorter focal length at the end of each lens face. The biconvex lens is mainly used to converge flight from a point source or to transmit images to other optical systems.

China Star Optics offers high quality custom designed optical spherical lens in any quantity from testing sample to mass production. Extremely small MOQ helps to reduce your initial project investment.

- Capacities from 10 mm to 350 mm
- A variety of UV, VIS ,IR materials and crystals available
- In accordance with RoHS Standard
- Custom upon your unique optical requirements

Spherical lens is the most basic optical component of the microscope optical system, the objective lens, eyepiece and focusing lens and other components are composed of single and multiple lenses. Depending on their shape, they can be divided into two categories: convex lenses (positive lenses) and concave lenses (negative lenses).

China Star Optics can provide different kinds of spherical lenses like plano concave lens, plano convex lens, achromatic lens. If you want to know more information about a plano-convex lens/mirror, such as the use and refractive index of a plano-convex lens, please contact us.


N-BK7, Fused Silica, zinc selenide, calcium fluoride and silicon etc.


Plano, concave and convex structures, and cemented.


5-200mm +0/-0.1mm

Surface Quality:

40/20 Scratch and Dig

Asphere Figure:

P-V<0.5 μm

Lens Centration:

3 arc sec


Uncoated, AR Coating, BBAR Coating etc.
