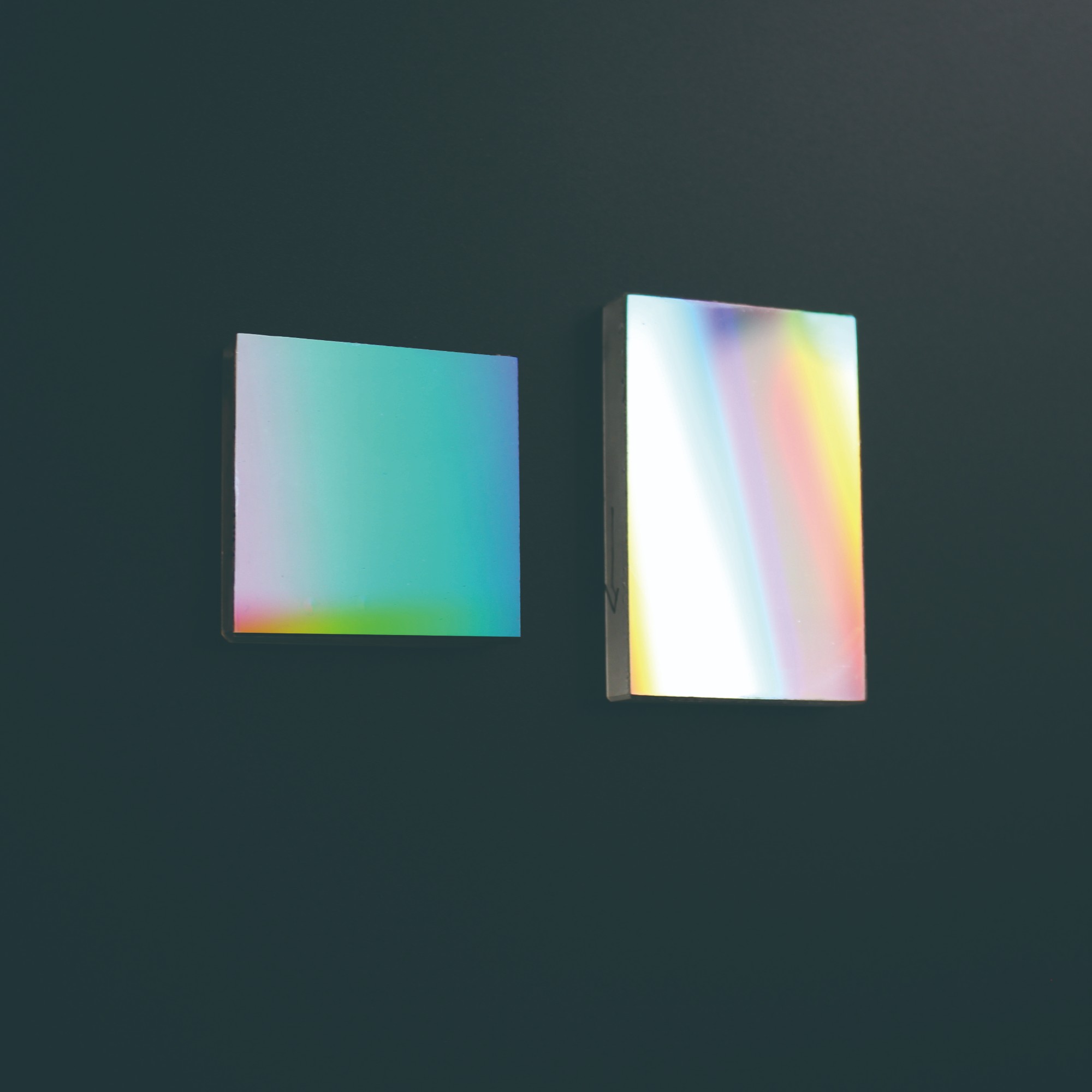

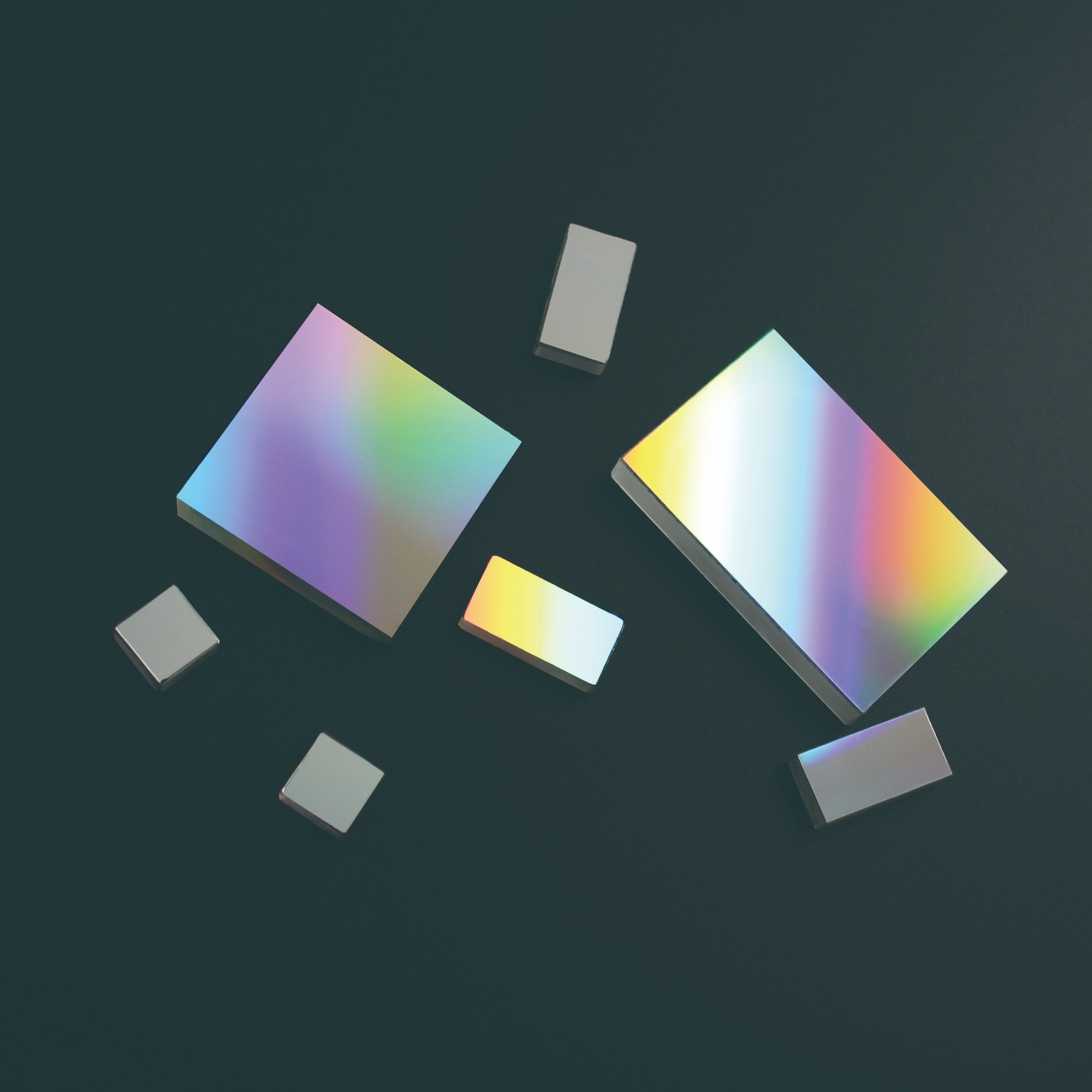

Plane Ruled Diffraction Gratings

  • Category: Optical Diffraction Gratings
  • Type of gratings: Reflection,Transmission
  • Superior efficiency and resolution
  • Perfect periodicity of grooves
  • Spectral range: from UV to IR
  • Product description:China Star Optics is a China-based diffraction gratings manufacturer. Plane holographic Gratings, concave holographic gratings, plane ruled gratings and other reflective gratings available.

Plane Ruled Diffraction Gratings

Ruled reflection gratings are especially well suited for spectroscopic systems where high efficiency and high resolution is essential. It covers a spectral range from UV to IR.

Plane Ruled Reflective Gratings are available with blaze wavelengths 500 nm or 1000 nm and optimized for use at 350-800 nm or 700-1600 nm respectively.  They are an excellent choice for spectroscopy setups using silicon detectors or fiber-optic telecommunication applications for which higher reflectivity in NIR/IR spectral regions is required.

China Star Optics offers high quality custom designed diffraction grating in any quantity from testing sample to mass production. Extremely small MOQ helps to reduce your initial project investment.

- Capacities from 10×10 mm to 110×110 mm
- Custom groove density master gratings available
- In accordance with RoHS Standard
- Custom upon your unique optical requirements

Material: N-BK7 glass
Type: Reflective, Transmission
Dimension: 10×10mm to 110×110mm
Groove Density: 300 L/mm, 600 L/mm, 900 L/mm, 1200 L/mm, 2400 L/mm
Wavelength Range: UV, VIS, IR
