Metal Coating Reflective Mirror
China Star Optics manufacture custom optical mirrors up to 300 mm in diameter. All mirrors go through a stict quality control and inspection process before leaving the factory to ensure satisfaction with every single product.
Protected aluminum mirrors are an deal choice for application in the visiable and near infrared. It has good reflectivity with Ravg>90% from 400nm – 2000nm. Silicon Monoxide is typically used as an overcoat to protect delicate aluminum mirror coating. This treatment provides an abrasion-resistant surface while maintaining the perfomance of aluminum mirror. For 200-250nm wavelength it is recommended to use MgF2 protective layer. It gives higher reflection values in UV spectrum.
Silver coating offer high reflectance in visible-NIR and IR spectrum. It has the highest reflectance in the visible-NIR spectrum of any metallic mirro. China Star Optics offer silver coating mirrors with durable overcoat protecting them from oxidation while still high humidity environments should be avoided.

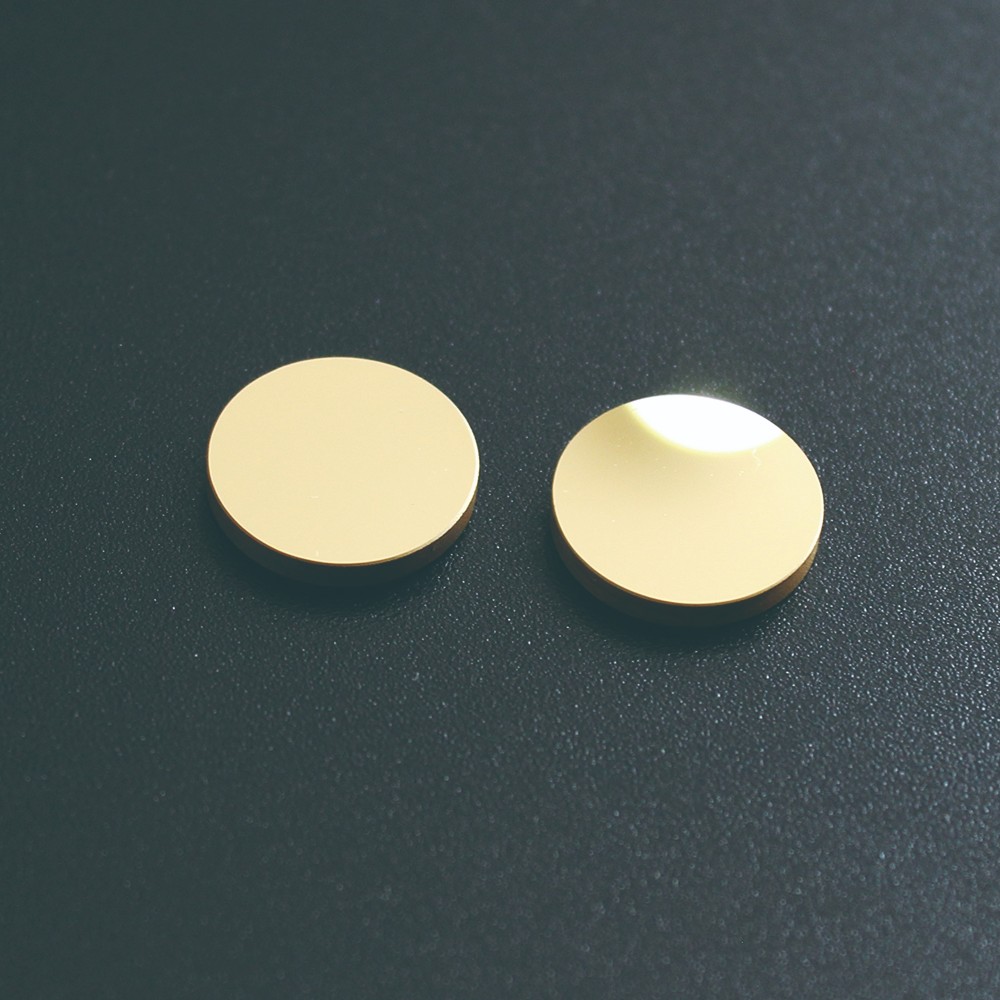

Gold mirrors are effective for applications requiring high reflectance requiring high refelctance in the NIR and IR reflections. It has good reflectivity with Ravg >96% 700 nm to 10 μm.
Dielectric Mirrors can be used for laser or ultra-high reflectance applications. This mirror can be designed for maximum reflection at one specific wavelength or range of wavelengths. Dielectric mirrors typically feature very low loss, >99% reflection at most common laser wavelength and can withstand moderate to high laser powers.
China Star Optics offers high quality custom designed reflective mirror in any quantity from testing sample to mass production. Extremely small MOQ helps to reduce your initial project investment.
- Capacities from 1 mm to 300 mm
- N-BK7, Silicon, Germanium, ZnSe, ZnS, etc. materials available
- In accordance with RoHS Standard
- Custom upon your unique optical requirements
|N-BK7, Silicon, Germanium, ZnSe, ZnS etc.|
|Metallic, Dielectric Coatings|
