Plano Concave Lens

  • Category: Spherical Lens
  • Plano concave spherical lens
  • Used to balance the aberration
  • Ideal for beam expansion, light projection and focal length expansion
  • Basic optical component of the microscope optical system
  • Product description:Optical plano concave lens, optical glass, BK7/K9, High quality and material, optical convex concave and bi convex spherical lens, customized diameter and material spherical lens.

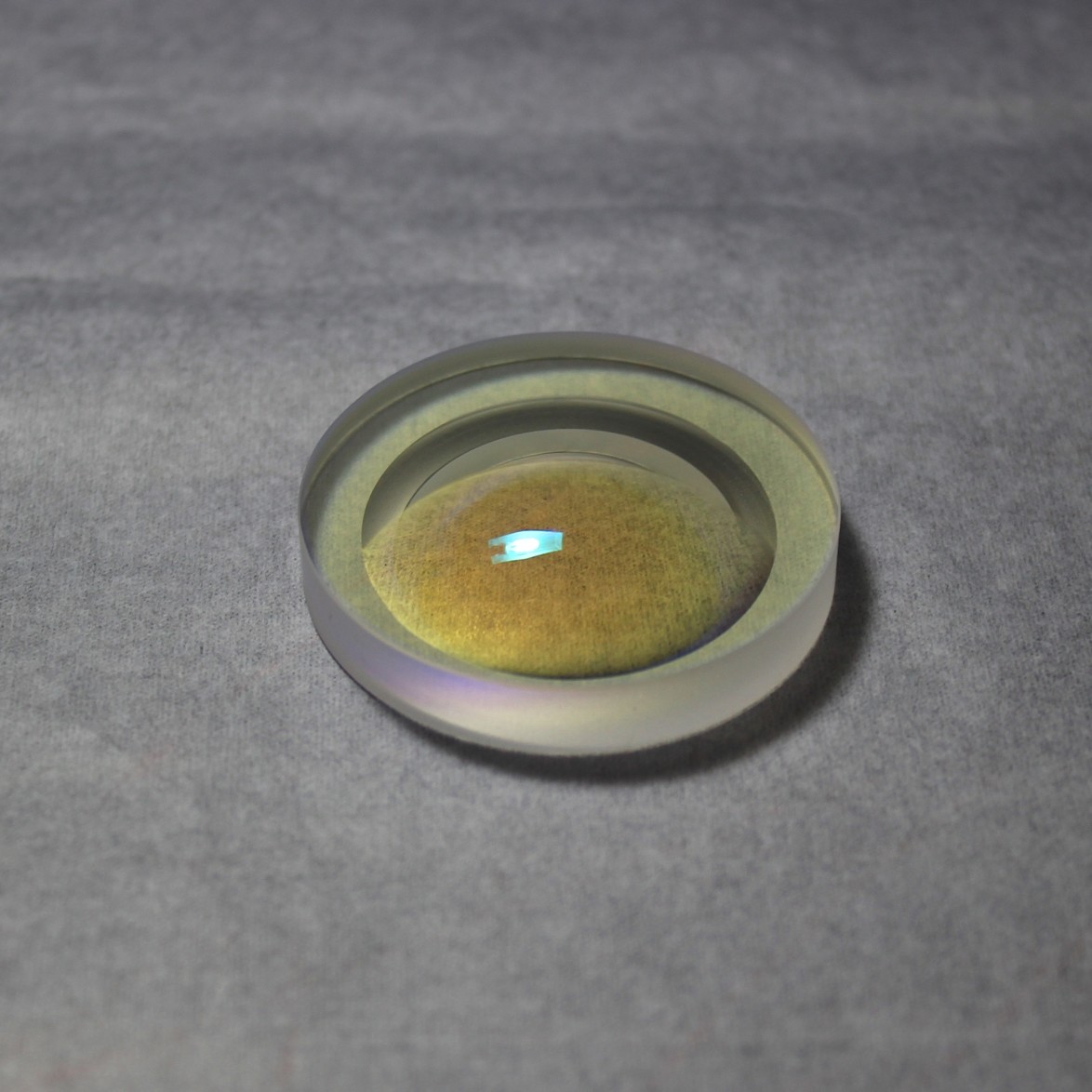

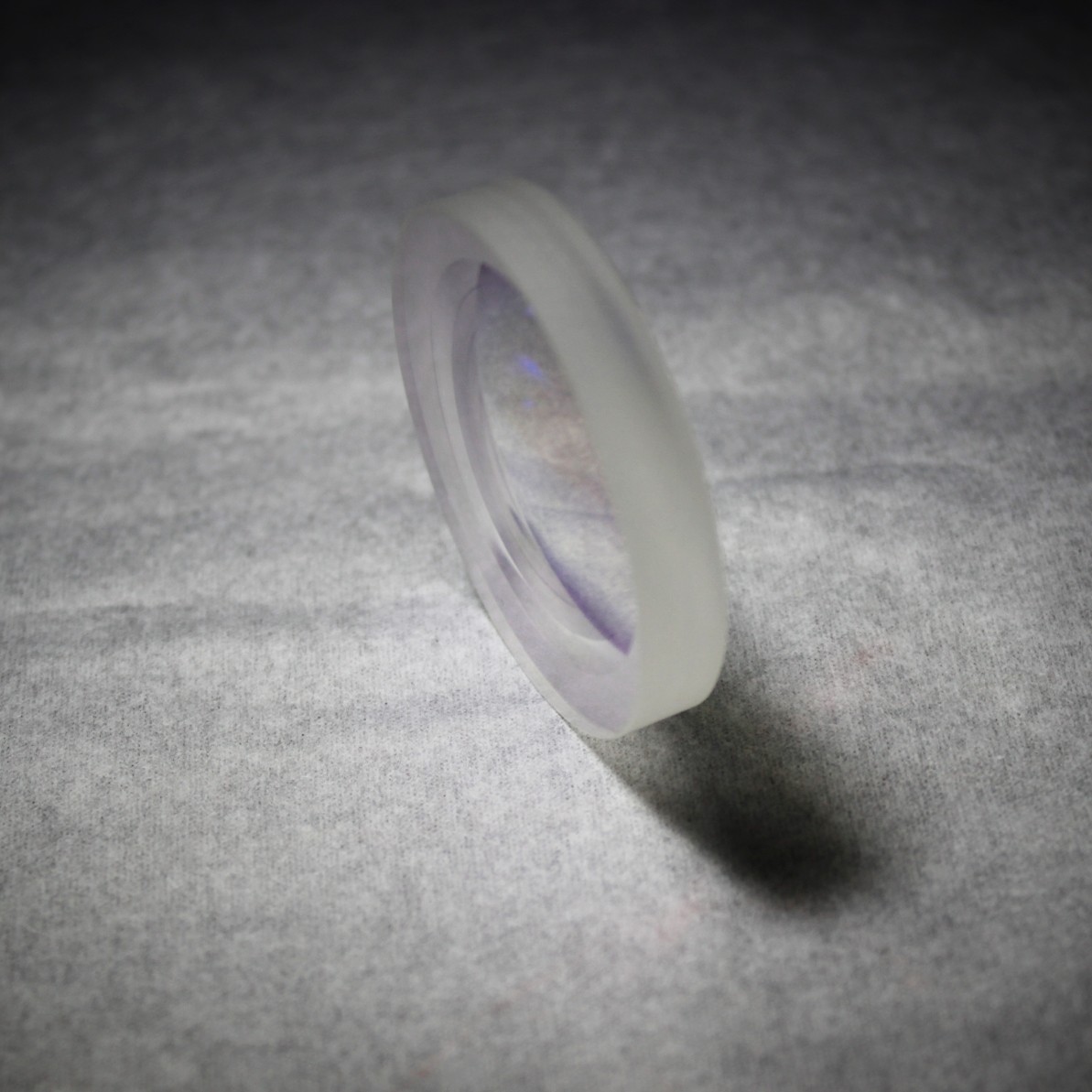

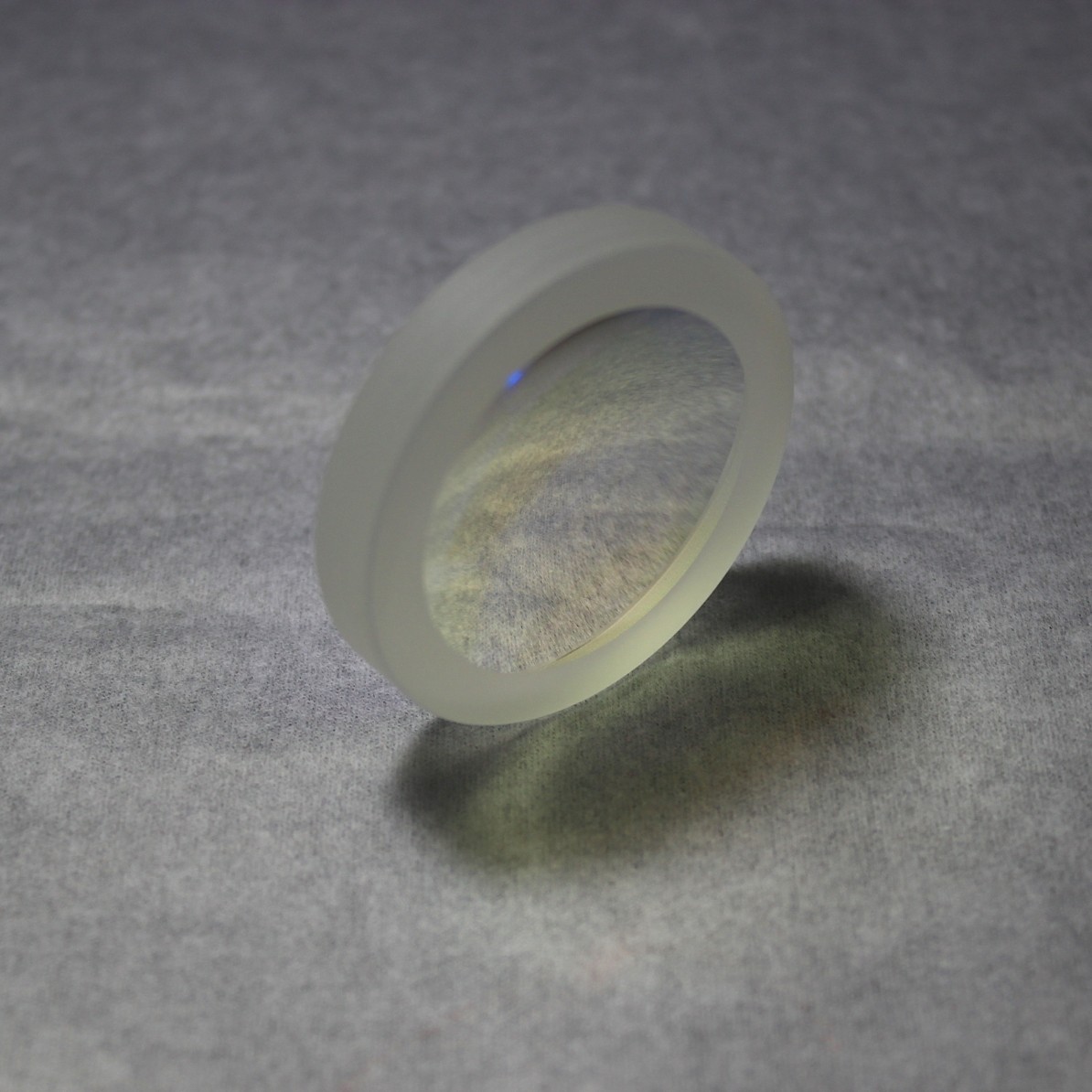

Plano concave spherical lens

A plano-concave lens bends the parallel input rays so that they diverge from each other on the output side of the lens and therefore has a negative focal length. The spherical aberration of a plano-concave lens is negative and can be used to balance the aberration produced by other lenses.

A plano-concave spherical lens consists of a flat surface and an inward curved surface with thicker edges than the center. It is ideal for beam expansion, light projection and focal length expansion of optical systems.

China Star Optics offers high quality custom designed optical domes in any quantity from testing sample to mass production. Extremely small MOQ helps to reduce your initial project investment.

- Capacities from 10 mm to 350 mm
- A variety of UV, VIS, IR materials and crystals available
- In accordance with RoHS Standard
- Custom upon your unique optical requirements

Spherical lens is the most basic optical component of the microscope optical system, the objective lens, eyepiece and focusing lens and other components are composed of single and multiple lenses. Depending on their shape, they can be divided into two categories: convex lenses (positive lenses) and concave lenses (negative lenses).

China Star Optics can provide different kinds of spherical lenses like plano concave lens, plano convex lens, achromatic lens. If you want to know more information about a plano-convex lens/mirror, such as the use and refractive index of a plano-convex lens, please contact us.


N-BK7, Fused Silica, zinc selenide, calcium fluoride and silicon etc.


Plano, concave and convex structures, and cemented.


5-200mm +0/-0.1mm

Surface Quality:

40/20 Scratch and Dig

Asphere Figure:

P-V<0.5 μm

Lens Centration:

3 arc sec


Uncoated, AR Coating, BBAR Coating etc.
