  • Fused Silica Window
  • Fused Silica Window
Fused Silica Window Fused Silica WindowFused Silica Window

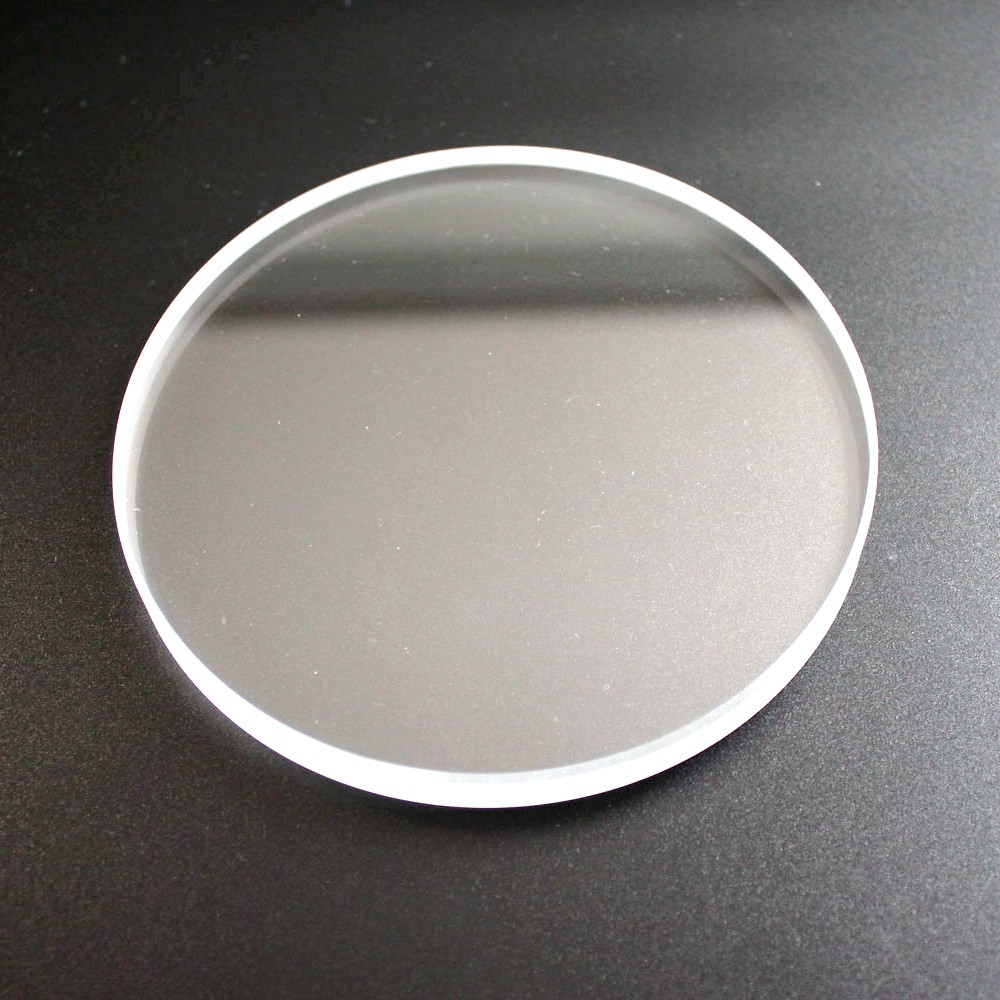

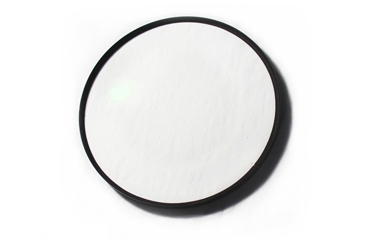

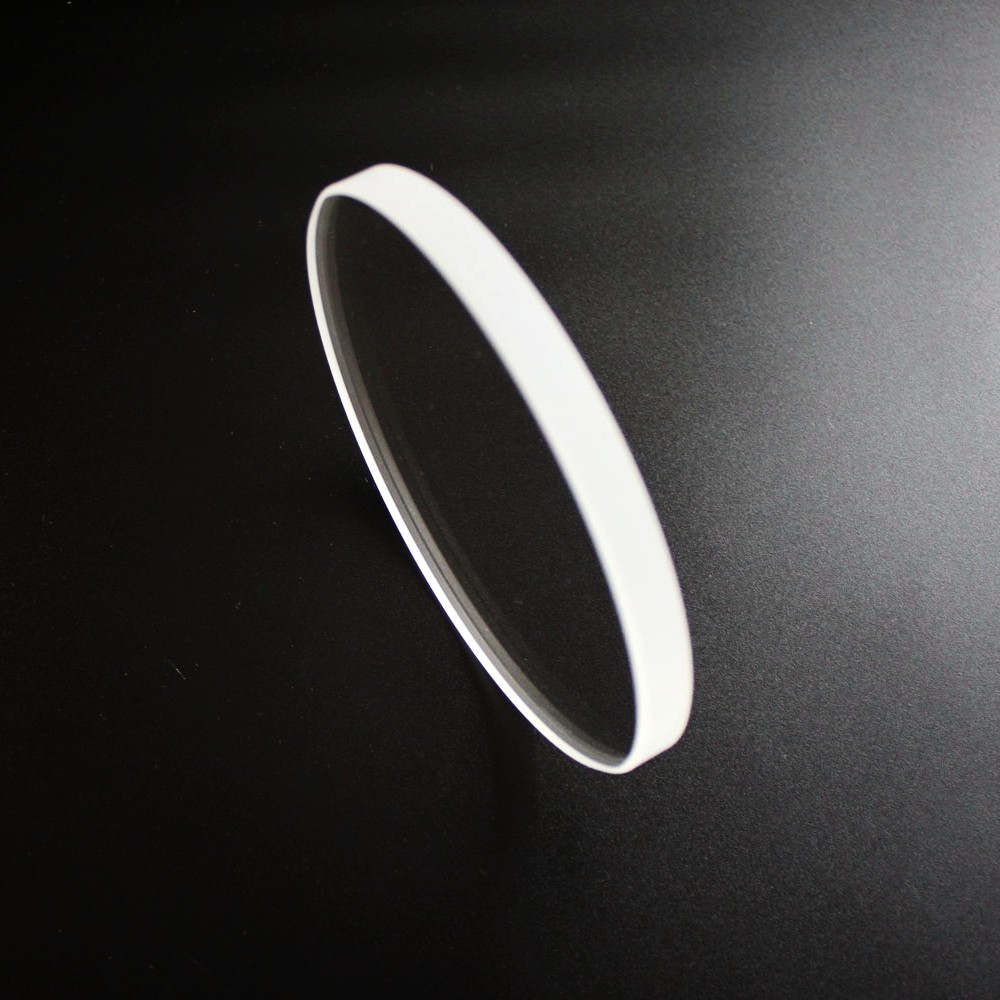

Fused Silica Window

  • Category: Optical Window
  • Extremely Small Coefficient of Thermal Expansion
  • High Stability and Resistance to Thermal Shock
  • Good UV and IR Transmission Performance
  • Coating Optional
  • Product description:UV Fused Silica Window and IR grade Fused Silica Window has extremely small coefficient of thermal expansion and can be used as optical view window under harsh environment.

Fused Silica has good UV and IR transmission performance, extremely small coefficient of thermal expansion. It has high stability and resistance to thermal shock over large temperature excursions, wide temperature operating range and high laser damage threshold. It is an excellent optical material under harsh environment.

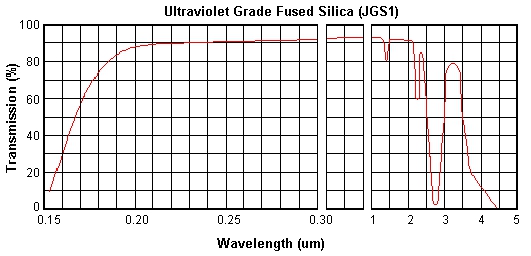

JGS1 Fused Silica

Transparent in the ultraviolet and visible regions. Used for optics operating in the deep UV and the visible wavelength range.

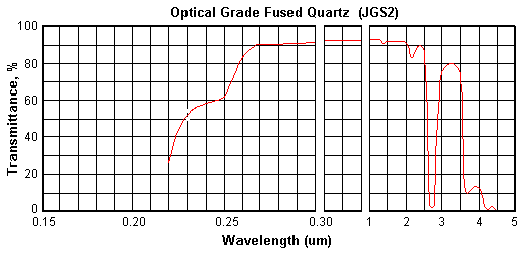

JGS2 Fused Silica

Good UV and visible transmission. Used for condenser optics not concerned with scatter or distortion, high temperature and pressure applications, optical flats, microscope slides and sight glasses. Can be made in small diameters/dimensions that can be very thin and is free of bubbles. Cons include possible bubbles in larger dimensions/diameters.

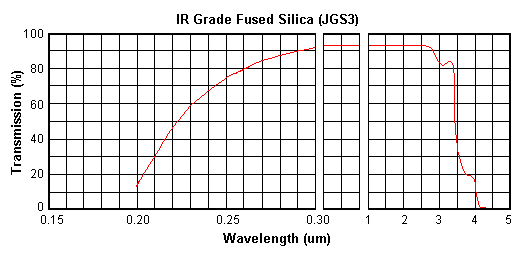

JGS3 Fused Silica

Transparent in the ultraviolet, visible and infrared spectral regions. No absorption bands in the visible region. Outstanding optical characteristics in the deep UV and the IR wavelength range.

Optical Window is one of the most commonly used optical elements, usually used as the optical view window of sensor, analyzer, or outdoor environment protection, vacuum sealed window etc. China Star Optics offers custom optical window. BK7 Window, Fused silica window, Sapphire window, CaF2 window, Zinc Selenide window, Germanium window, Silicon window etc. precision optical protective windows can be customized. Laser windows range from UV to VIS, NIR, SWIR further MWIR and LWIR are available.

China Star Optics offers high quality custom designed optical windows in any quantity from testing sample to mass production. Extremely small MOQ helps to reduce your initial project investment.

- Capacities from 1 mm to 500 mm
- Optical glass, ZnSe, ZnS, CaF2, BaF2, GaAs, Ge, Si etc. materials available
- In accordance with RoHS Standard
- Custom upon your unique optical requirements

Material: UV, VIS, IR materials and crystals. BK7, Fused silica, Ge, ZnSe etc.
Shape: Round, quadrate, triangular or other polygonal
Diameter: 1-500mm +0/-0.2mm
Surface Quality: 40/20 Scratch and Dig
Flatness: 1/10 L @632.8 nm
Lens Centration: 3 arc sec


Uncoated, AR Coating, BBAR Coating etc.
