  • Concave Holographic Diffraction Gratings
  • Concave Holographic Diffraction Gratings
Concave Holographic Diffraction Gratings Concave Holographic Diffraction GratingsConcave Holographic Diffraction Gratings

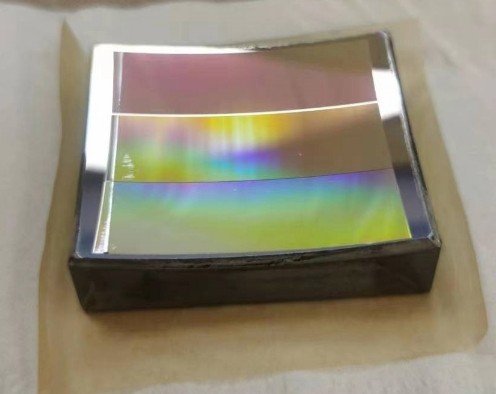

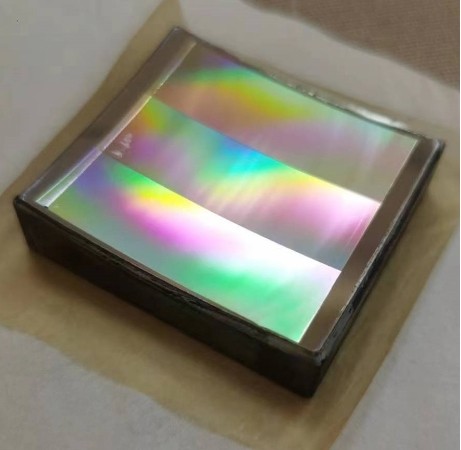

Concave Holographic Diffraction Gratings

  • Category: Optical Diffraction Gratings
  • Type of gratings: Reflection,Transmission
  • Perfect periodicity of grooves
  • Lower level of stray light
  • Widely used in aerospace, medical, military, instrumentation
  • Product description:China Star Optics is a China-based diffraction gratings manufacturer. Plane holographic Gratings, concave holographic gratings, plane ruled gratings and other reflective gratings available.
  • INQUIRY   EMAIL


Concave Holographic Diffraction Gratings


Holographic technology can be used to creat gratings of various shapes and arrangements on glass substrates according to different requirements. Holographic gratings can correct aberrations due to their controllable groove pattern technology.

The main advantages of holographic planar gratings with aberration correction compared to ordinary ruled gratings are:

1. Holographic gratings can reduce stray light to a very low level.

2. Aberration correction gratings can reduce the impact of aberration on the system to a very low level.



China Star Optics offers high quality custom designed diffraction grating in any quantity from testing sample to mass production. Extremely small MOQ helps to reduce your initial project investment.


- Capacities from 10×10 mm to 110×110 mm
- Custom groove density master grating available
- In accordance with RoHS Standard
- Custom upon your unique optical requirements



Material: N-BK7 glass
Type: Reflective, Transmission, Concave
Dimension: 10×10mm to 110×110mm
Groove Density: 300 L/mm, 600 L/mm, 900 L/mm, 1200 L/mm, 2400 L/mm
Wavelength Range: UV, VIS, IR
